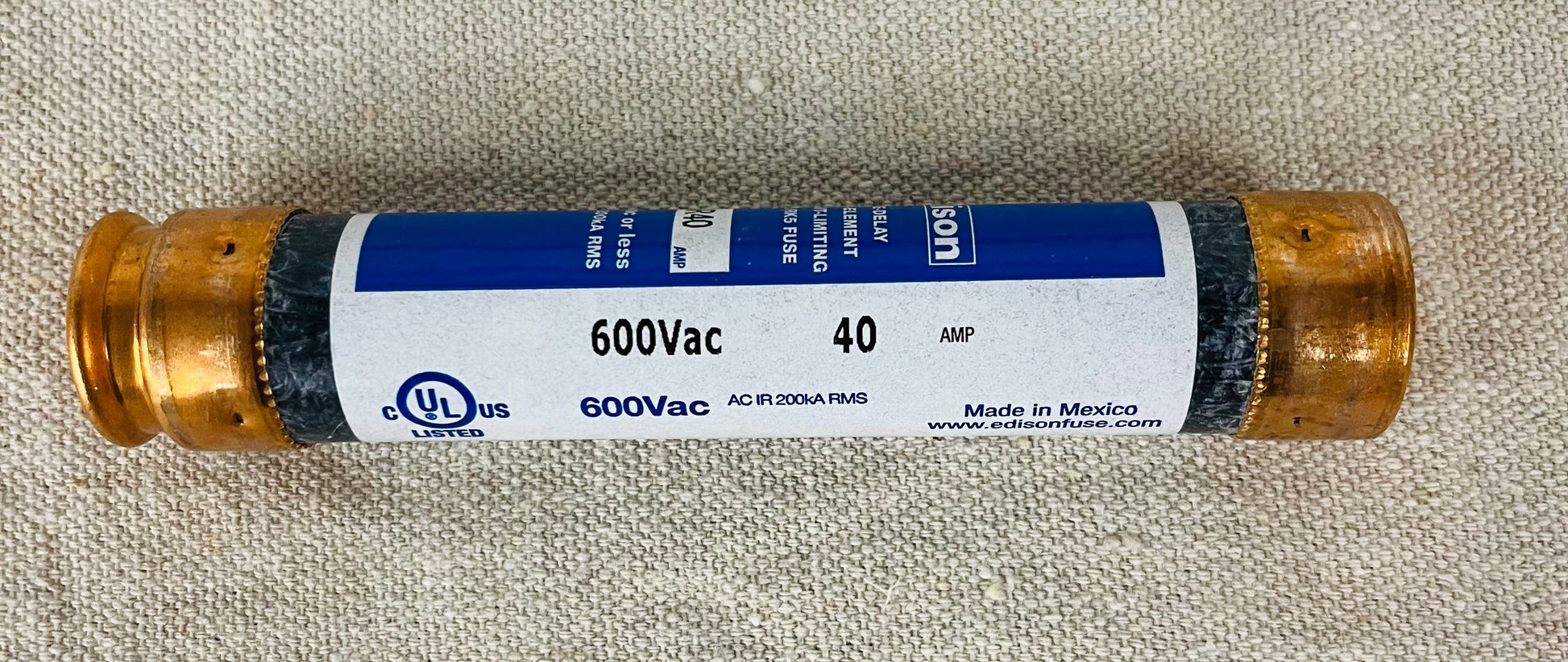

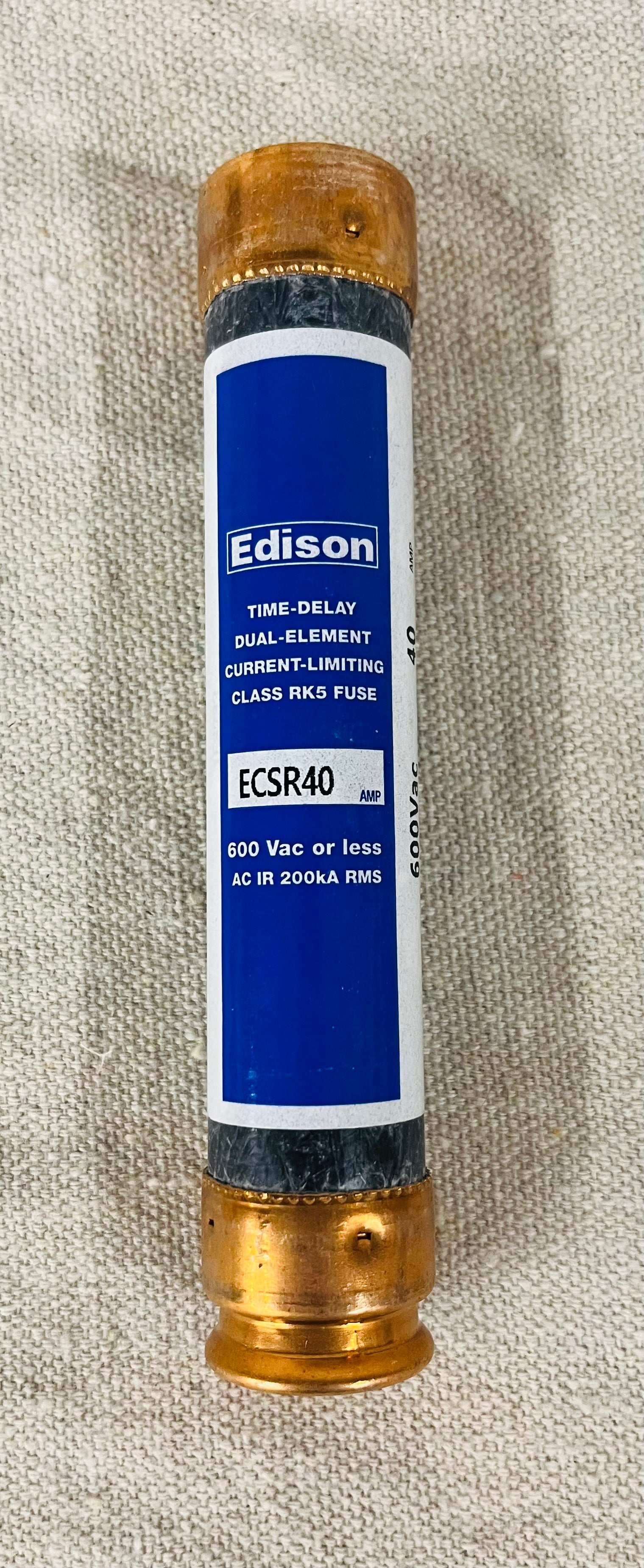

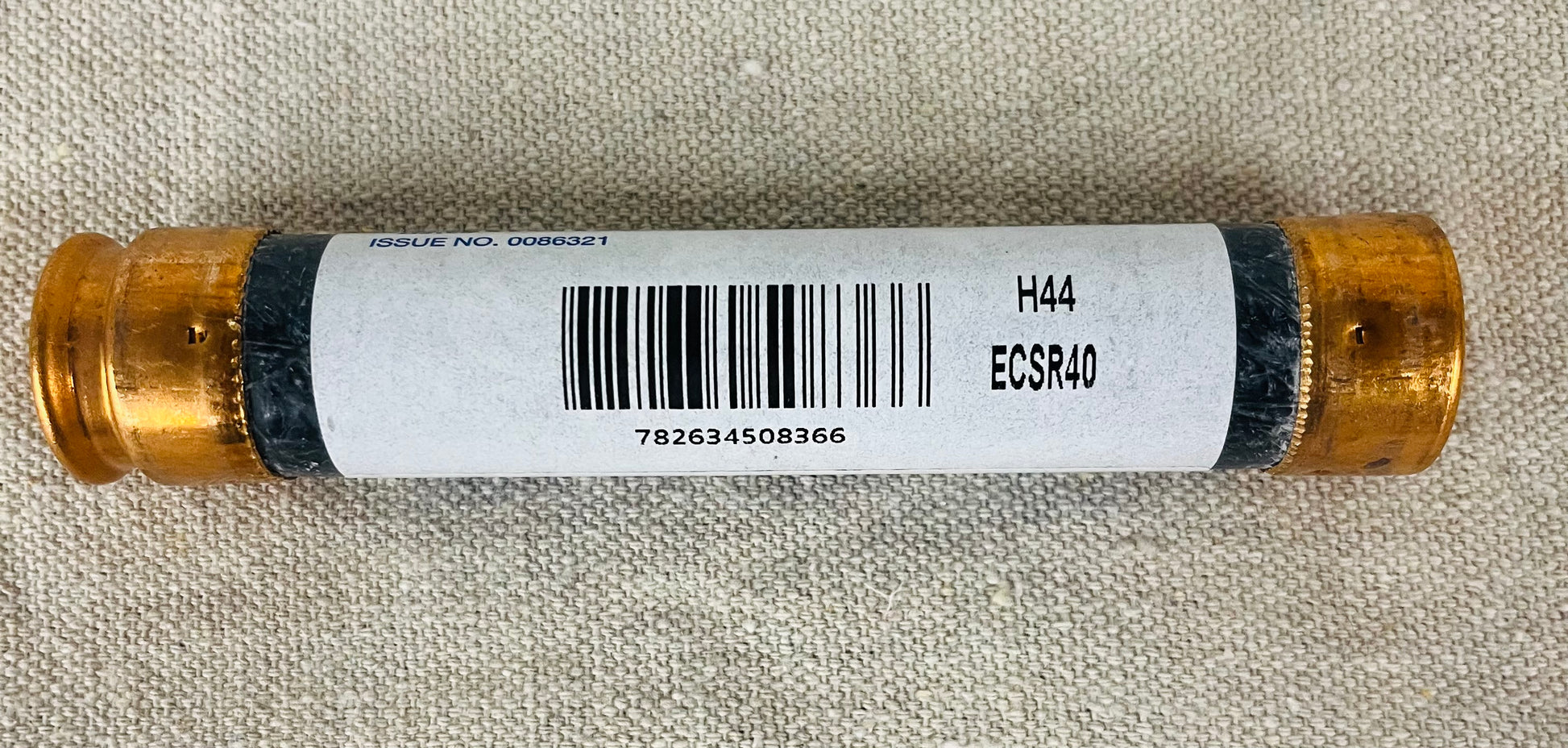

Edison ECSR40 40-Amp Time-Delay Fuse – Class RK5, 600V AC | BHASR40

The Edison ECSR40 is a premium 40-amp, time-delay, dual-element fuse designed for demanding industrial and commercial electrical applications. Part of Edison’s Class RK5 series, this fuse provides reliable overload protection and excellent current-limiting performance for motor circuits, panelboards, disconnects, and general branch-circuit protection.

Featuring a 600 VAC rating, 200kA interrupting capacity, and rugged copper end caps, the ECSR40 is engineered for long life and consistent performance. Ideal as a replacement fuse for OEM equipment or facility maintenance programs.

Features

• Model: ECSR40 / BHASR40

• 40 Amp, Class RK5

• 600 VAC or less

• Time-delay, dual-element design for motor loads

• Current-limiting with high interrupt rating (200kA RMS)

• UL Listed; industrial-grade construction

• Made in Mexico

Perfect for electricians, contractors, and facilities requiring dependable overcurrent protection.

Ships from Wisconsin.
